Formliner Motion
The structure is characterised by its smooth, horizontally running lines. The different heights and depths of the lines create an additional tension and lend a geometric-abstract atmosphere.
2/255 Motion
Drag to rotate the view. Scroll or pinch to zoom.
Technical information
Dimensions
| Series | Uses | Dimensions (mm) | Ordernumber |
|---|---|---|---|
| C | 100 | 6000 3000 | C2255 |
100
100-timer formliners are supplied in an individual dimension within the maximum indicated sizes.
Please note: The drawing shows the formliner, not the concrete view.
Section Drawing
The drawing illustrates the cross-section of our formliner.

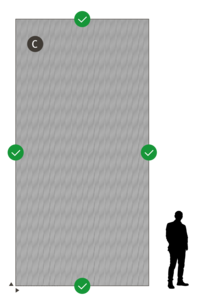

Profile Continuity
Profile continuity is guaranteed at the respective maximum dimensions of the formliner.
Please note: The drawing shows the formliner, not the concrete view.
Important note: To guarantee homogeneity of the concrete surface, it is not recommended to mix the series.
Material
-
MaterialRECKLI PUR-Elastomer
-
Temperature Limitmax. 65 °C
-
Weight≈ 19 kg/m²
-
Dimensional TolerancesSee Formliner Properties page for details
