Formliner Somme
A vertically running wood pattern. The uneven surface of the sticks is reminiscent of broken and splintered wooden beams.
Tell me more
The Concrete Pattern is designed by André Berthier & Joseph Frassanito.
Technical information
Dimensions
| Series | Uses | Dimensions (mm) | Ordernumber |
|---|---|---|---|
| C | 100 | 7900 1270 | C2168 |
| F | 50 | 6000 1000 | F2168 |
| T | 10 | 6000 1000 | T2168 |
100
100-timer formliners are supplied in an individual dimension within the maximum indicated sizes.
50/10
The specified widths of the 10-timer and 50-timer formliners are a fixed dimension and ensure the continuity of the structure in the case of linear patterns. The longitudinal direction of the pattern is variable and can be ordered from 1 m up to the maximum dimension in 10 cm steps.
Section Drawing
The drawing illustrates the cross-section of our formliner.

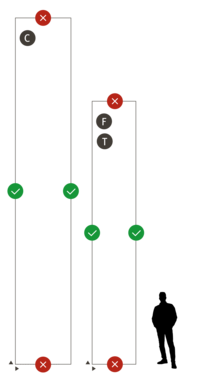

Profile Continuity
Profile continuity is guaranteed at the respective maximum dimensions of the formliner.
Important note: To guarantee homogeneity of the concrete surface, it is not recommended to mix the series.
Material
-
MaterialRECKLI PUR-Elastomer
-
Temperature Limitmax. 65 °C
-
Weight≈ 25 kg/m²
-
Dimensional TolerancesSee Formliner Properties page for details
