Formliner Brisbane
Brisbane is a light curtain pattern with many small folds. Its smooth waves create the even appearance of a curtain.
Technical information
Dimensions
| Series | Uses | Dimensions (mm) | Ordernumber |
|---|---|---|---|
| C | 100 | 5500 1000 | C2247 |
| F | 50 | 5500 1000 | F2247 |
| T | 10 | 5500 1000 | T2247 |
100
100-timer formliners are supplied in an individual dimension within the maximum indicated sizes.
50/10
The specified widths of the 10-timer and 50-timer formliners are a fixed dimension and ensure the continuity of the structure in the case of linear patterns. The longitudinal direction of the pattern is variable and can be ordered from 1 m up to the maximum dimension in 10 cm steps.

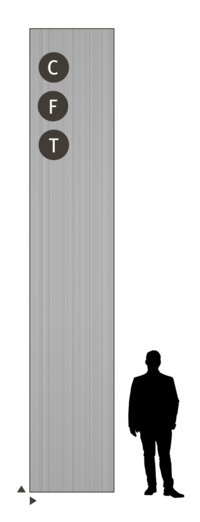

Please note: The drawing shows the formliner, not the concrete view.
Section Drawing
The drawing illustrates the cross-section of our formliner.

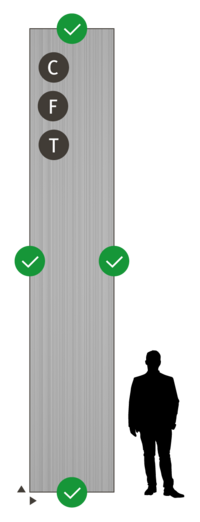

Profile Continuity
Profile continuity is guaranteed at the respective maximum dimensions of the formliner.
Please note: The drawing shows the formliner, not the concrete view.
Important note: To guarantee homogeneity of the concrete surface, it is not recommended to mix the series.
Material
-
MaterialRECKLI PUR-Elastomer
-
Temperature Limitmax. 65 °C
-
Weight≈ 20 kg/m²
-
Dimensional TolerancesSee Formliner Properties page for details
