Formliner Sinus 27/100
A wave structure with a corrugated-sheet appearance, animated by the play of light and shadow. The distance between the elevations is 100 millimeters.
1/172 Sinus 27/100
Drag to rotate the view. Scroll or pinch to zoom.
Technical information
Dimensions
| Series | Uses | Dimensions (mm) | Ordernumber |
|---|---|---|---|
| F | 50 | 5000 1000 | F1172 |
| T | 10 | 5000 1000 | T1172 |
50/10

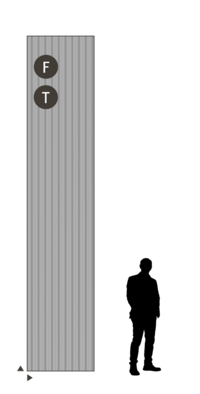

The specified widths of the 10-timer and 50-timer formliners are a fixed dimension and ensure the continuity of the structure in the case of linear patterns. The longitudinal direction of the pattern is variable and can be ordered from 1 m up to the maximum dimension in 10 cm steps.
Please note: The drawing shows the formliner, not the concrete view.
Section Drawing
The drawing illustrates the cross-section of our formliner.

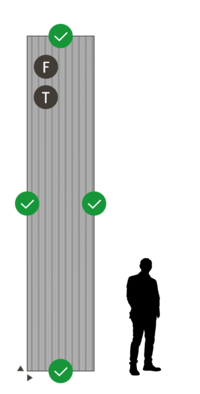

Profile Continuity
Profile continuity is guaranteed at the respective maximum dimensions of the formliner.
Please note: The drawing shows the formliner, not the concrete view.
Important note: To guarantee homogeneity of the concrete surface, it is not recommended to mix the series.
Material
-
MaterialRECKLI PUR-Elastomer
-
Temperature Limitmax. 65 °C
-
Weight≈ 33 kg/m²
-
Dimensional TolerancesSee Formliner Properties page for details
