Formliner Tetra
Abstract
The geometric texture brings an entirely architectural character to the exposed concrete surface through its seamlessly smooth surface with cut-out triangles.
2/253 Tetra
Drag to rotate the view. Scroll or pinch to zoom.
Technical information
Dimensions
| Series | Uses | Dimensions (mm) | Ordernumber |
|---|---|---|---|
| C | 100 | 6000 3000 | C2253 |
100
100-timer formliners are supplied in an individual dimension within the maximum indicated sizes.

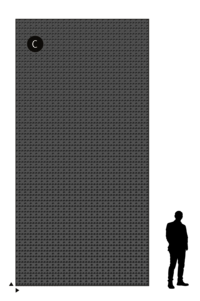

Please note: The drawing shows the formliner, not the concrete view.
Section Drawing
The drawing illustrates the cross-section of our formliner.

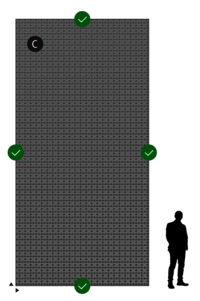

Profile Continuity
Profile continuity is guaranteed at the respective maximum dimensions of the formliner.
Please note: The drawing shows the formliner, not the concrete view.
Important note: To guarantee homogeneity of the concrete surface, it is not recommended to mix the series.
Material
-
MaterialRECKLI PUR-Elastomer
-
Temperature Limitmax. 65 °C
-
Weight≈ 18 kg/m²
-
Dimensional TolerancesSee Formliner Properties page for details
