Formliner Tigris

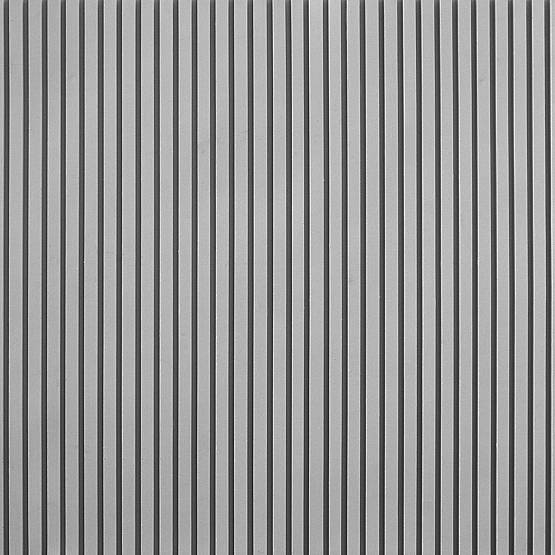

A clear and smooth rib pattern with vertically aligned ribs, separated by 9-millimeter wide joints.
Technical information
Dimensions
| Series | Uses | Dimensions (mm) | Ordernumber |
|---|---|---|---|
| C | 100 | 6000 3000 | C2077 |
| F | 50 | 6000 1000 | F2077 |
100
100-timer formliners are supplied in an individual dimension within the maximum indicated sizes.
50
The specified width of the 50-timer formliner is a fixed dimension and ensures the continuity of the structure in the case of linear patterns. The longitudinal direction of the pattern is variable and can be ordered from 1 m up to the maximum dimension in 10 cm steps.
Please note: The drawing shows the formliner, not the concrete view.
Section Drawing
The drawing illustrates the cross-section of our formliner.
Profile Continuity
Profile continuity is guaranteed at the respective maximum dimensions of the formliner.
Please note: The drawing shows the formliner, not the concrete view.
Important note: To guarantee homogeneity of the concrete surface, it is not recommended to mix the series.
Material
-
MaterialRECKLI PUR-Elastomer
-
Temperature Limitmax. 65 °C
-
Weight≈ 19 kg/m²
-
Dimensional TolerancesSee Formliner Properties page for details
